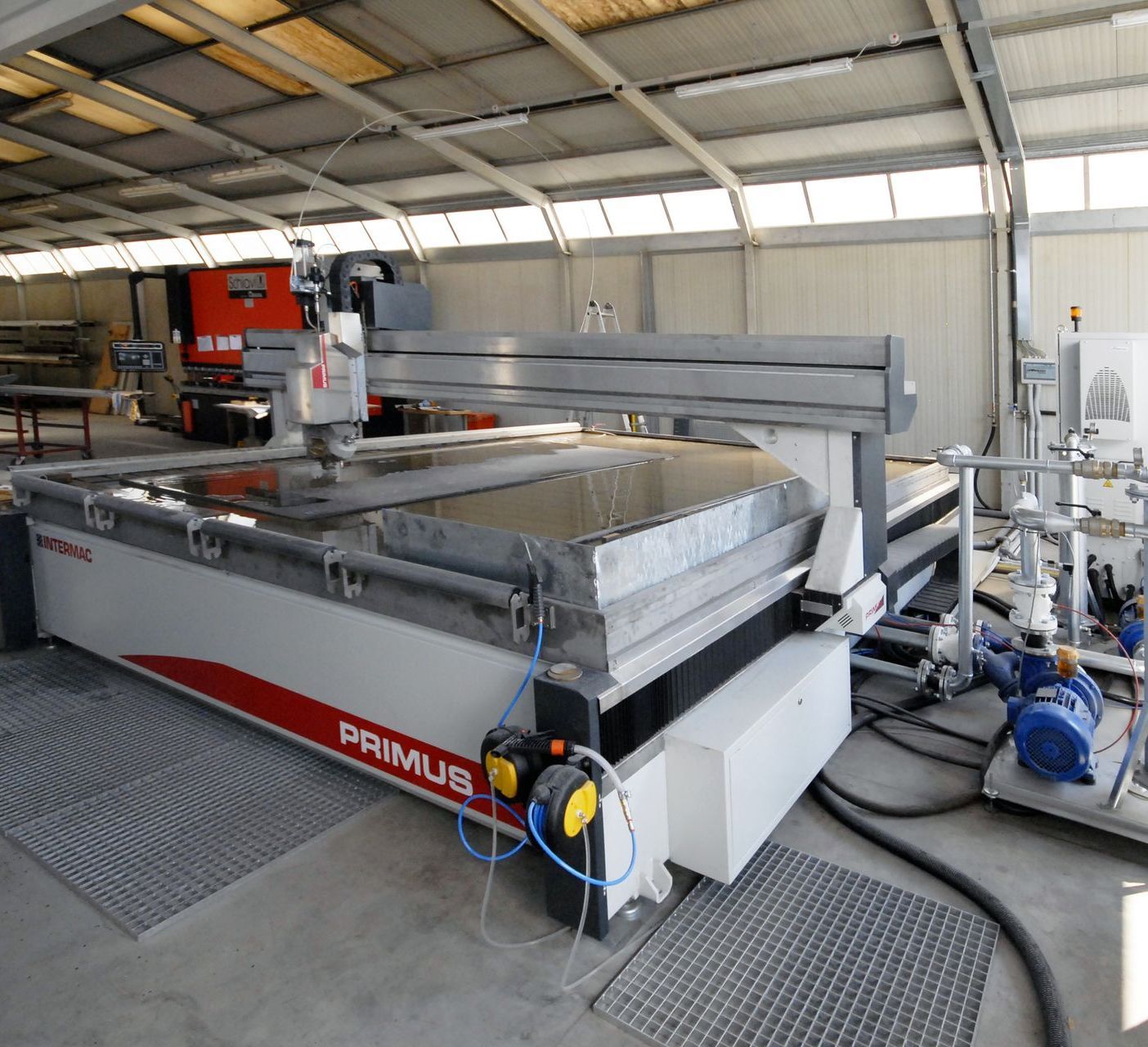

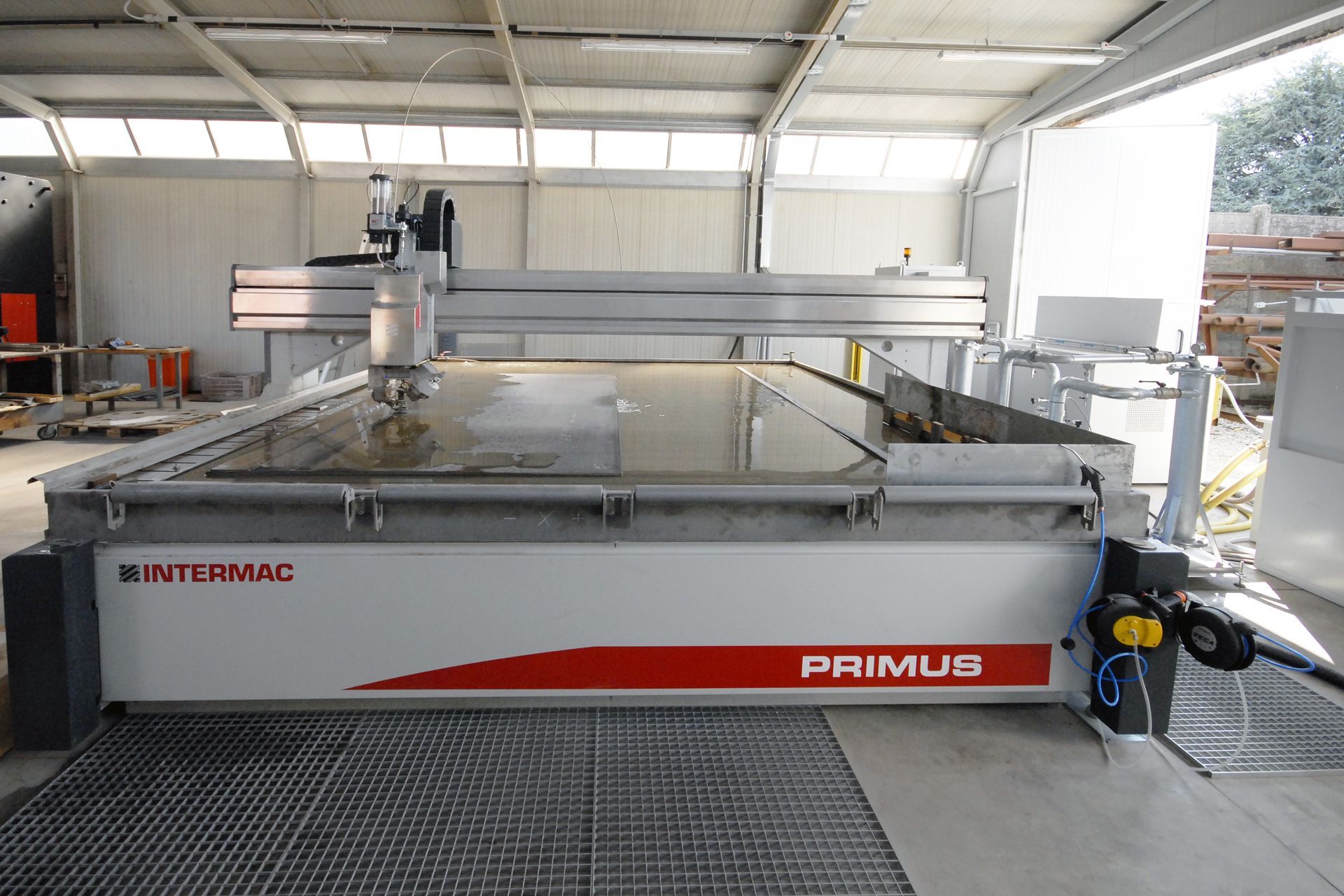

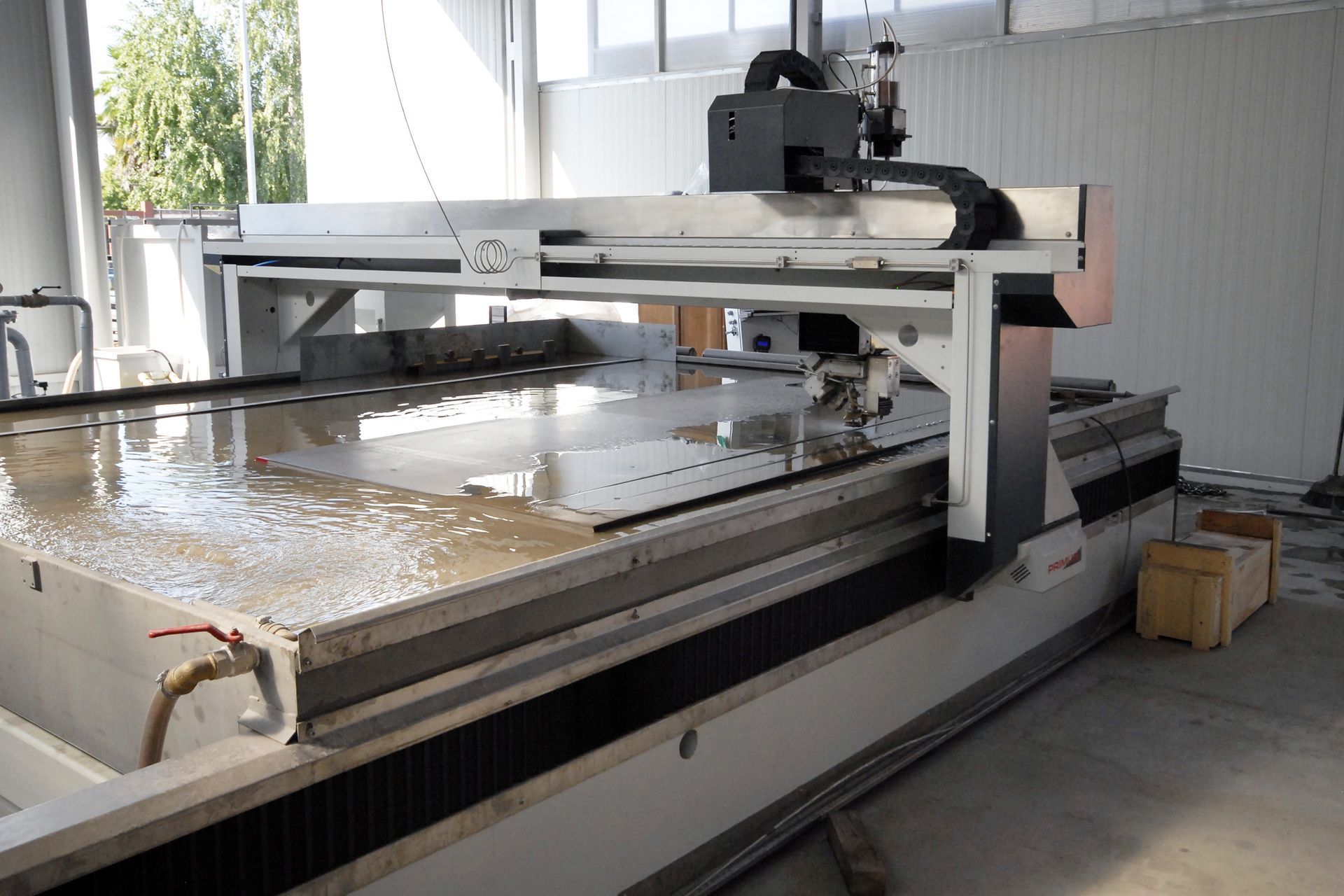

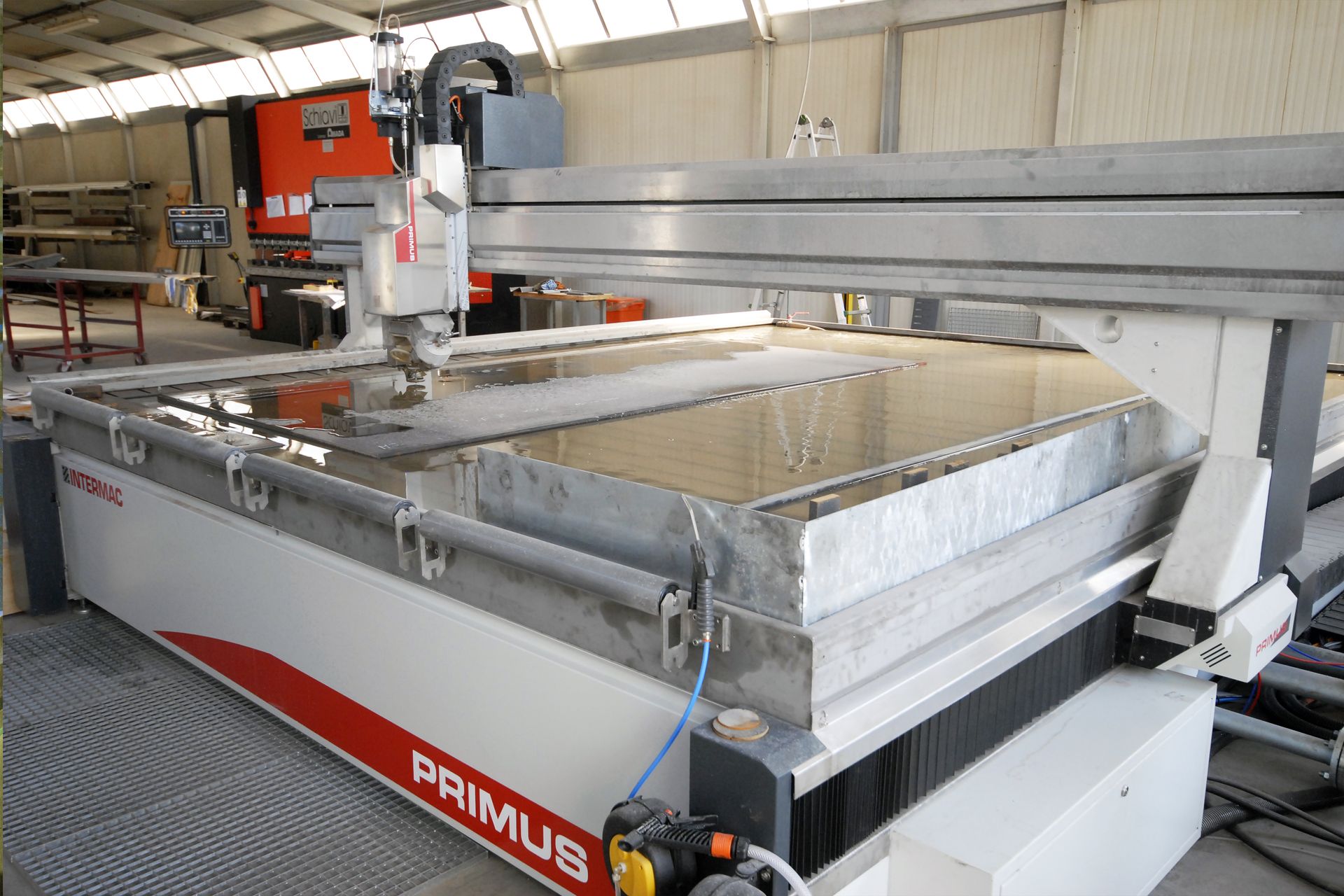

INTERMAC 324 TECHNOLOGICAL CUTTING EDGE

Intermac 324 dedicated to waterjet cutting.

The system adapts perfectly to different needs, is able to process a practically unlimited range of materials and independently of the size of the series and the dimensions of the pieces to be produced.

The cutting is achieved by means of a supersonic jet, which is obtained by channelling, through a suitably calibrated hole, a flow of water at very high pressure which produces a coherent jet projected at a speed almost three times that of sound (810 m/s).

MAIN FEATURES

1. Precise and flexible machining for an almost unlimited variety of materials and thicknesses;
2. Absolute freedom in creating complex shapes with extreme ease and quality;
3. Cold cutting, no thermal or structural alterations in the material being worked;
4. Maximum use of the material thanks to the very small jet diameter and the minimum distance between the workpieces.
5. Management of cutting times and costs based on the desired quality of workmanship for the final product;
6. No workpiece clamping systems or tool changes are required;
7. Immediate completion of the process thanks to a rich database that allows you to link the correct technological parameters based on the material, thickness and desired cutting quality.

In summary:

- Working area, 3210 x 4000.

- Maximum loadable plate size, 3300 x 4300.

- Z-axis travel, 200 with 5-axis head.

- Maximum load capacity of the piece support surface, 1000 kg.
